Panthera U3
The Panthera U3 is a super lightweight rigid-framed chair that can be effectively tailored to the individual user. The U3 features a tapered front frame with a steeper footrest angle that allows for a more upright and active position compared to the S3.
Rigidity is particularly important for efficient manual propelling. The U3's frame is particularly rigid thanks to a dual tube design, where the front castors and footrest are connected to the seat by two frame tubes on either side.
From £2,600
Key features:
- Low weight, stable fixed frame, casters with a unique profile
- The seating angle, adjustable backrest and the backrest tilt function provide an extremely good seating comfort
- Clever features and elegant design decisions
- Gives a more upright and active driving position compared to S3
Low weight, stable fixed frame, casters with a unique profile
Clever features and elegant design decisions

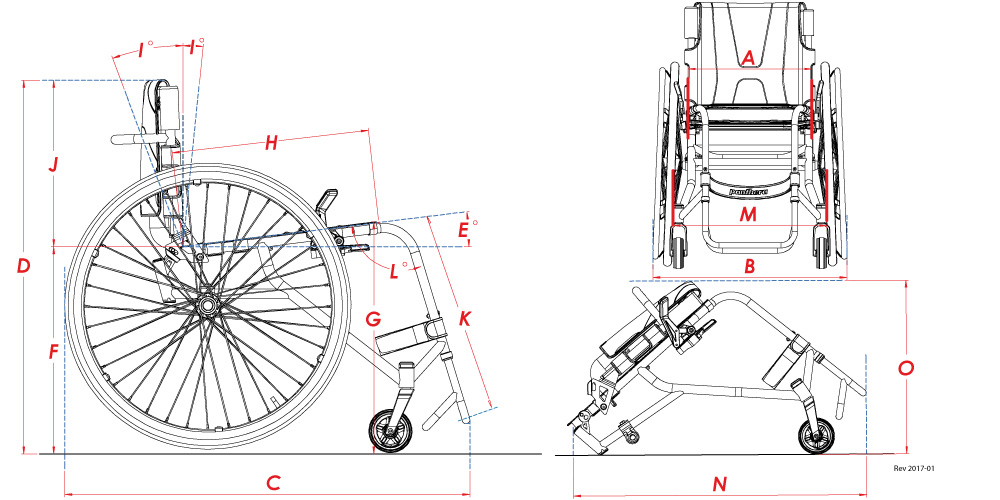

Geometry & Downloads
| Seat widths(A): | 33,36,39,42 and 45 cm |
| Backrest height(J): | 20-45 (standard) cm |
| Seat height, rear(F): | 43 cm |
| Seat height, front(G): | 47 cm |
| Seat depth(H): | 35-46 cm |
| Seat angle(E): | 7° |
| Total length(C): | 84 cm |
| Total height(D): | 64-84 cm |
| Total width(B): | Seat width + 21 cm |
| Max. user weight: | 100 Kg (45cm width - 150kg) |
| Seat widths(g): | Total weight(g): | Trans. weight(g): |
| 33 | 8043 | 4483 |
| 36 | 8180 | 4571 |
| 39 | 8131 | 4569 |
| 42 | 8219 | 4747 |
| 45 | 8527 | 4967 |
